Zebra (formerly Motorola / Symbol) AP 622 Wireless Access PointDiscontinued Replaced by: Extreme Networks (formerly Zebra / Motorola) AP 6522 Dual Radio 802.11a/b/g/n Wireless Access Point

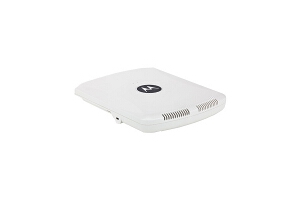

Zebra (formerly Motorola / Symbol) AP 622 Wireless Access Point
With increasing number of Wi-Fi enabled devices and bandwidth heavy applications connecting to your wireless network, you need a cost-effective solution that delivers high performance. The AP 622 combines the power of WiNG 5 intelligence at the edge with the cost-efficiency of a dependent access point. When deployed with a wireless controller, the AP 622 offers top 802.11a/b/g/n performance along with direct forwarding, security and quality of service (QoS) services at the edge to deliver a better experience.
Dual Radios Mean No Dueling Applications
The AP 622 is a dependent dual radio access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN. The access point features dual MIMO radios and a GigE WAN uplink port. One radio can be used for client access while the second radio is used for simultaneous client access on a different frequency band or as a dedicated sensor on both 2.4 and 5.0 GHz bands for security and troubleshooting. WiNG 5 intelligence ensures traffic is locally forwarded along the most efficient paths without sacrificing QoS and security is implemented at the access point itself.
Out-of-the-box, this access point supports voice over wireless LAN (VoWLAN) QoS, which ensures toll-quality even with many simultaneous VoWLAN calls on a single access point. Locationing services over 802.11 provide the ability to locate and track people or assets, and even to control access to the network or applications. In addition, its easy to provide hotspot and guest access and assure the user can only access authorized networks, sites, or applications.
High Reliability and Smart RF
Common problems such as building attenuation, electronic interference or sub-optimal access point placement are minimized as the SMART RF feature automatically optimizes power and channel selection so each user gets always-on high-quality access and mobility.
The AP 622 is designed to optimize network availability through its central and pre-emptive intelligence which dynamically senses weak or failing signals, securely moves mobile users to alternate APs, and boosts signal power to automatically fill RF holes and ensure uninterrupted mobile user access.
Security includes layer 2-7 stateful packet filtering firewall, AAA RADIUS services, Wireless IPS-lite, VPN gateway, and location-based access control.
By adding Airdefense Security and Network Assurance tools, operators of Wireless LANs get a more secure network that delivers better performance and more costeffective deployments. Our Radioshare feature increases the integration between sensor radios and client access radios by enabling sharing of information to support threat detection and mitigation. The result - you get a wireless network with fewer dedicated sensor radios while achieving improved security and network assurance performance.
Fast and Easy Deployment
The access ports require no configuration or manual firmware maintenance. The Zebra wireless controller discovers access points on the network and automatically downloads all configuration parameters and firmware, greatly reducing installation, maintenance and troubleshooting costs for Layer 2 and Layer 3 deployments.
Comprehensive Wireless LAN Services
Zebra’s comprehensive portfolio of Services offerings is built upon a lifecycle approach to help you at every phase: Professional, Integration, Support and Managed Services. We provide the right Services to help you exceed your organizational goals. Our deep domain expertise in government and enterprise technologies gives us the unique ability to transform technology into powerful solutions.
Full 802.11n performance with standard 802.3af
- Simplifies and reduces total cost of installation using standard Power-over- Ethernet (PoE)
Dual Radio Design
- Radios can be configured for client access on 2.4Ghz and 5.0Ghz or independently used with one radio for client access and the second radio for sensing
- Allows concurrent sensing on 2.4 Ghz and 5.0 Ghz frequency bands for multiband intrusion protection or troubleshooting
- Supports fast secure roaming
- Supports Call Admission Control, for optimized VoWLAN performance, as well as video streaming and data throughput for 802.11 a/b/g/n clients
Load balancing, pre-emptive roaming and rate scaling
- Increases reliability and resilience of the wireless network to support mission critical applications
