Zebra (formerly Motorola / Symbol) LS4000 Corded Handheld Laser (1D) Barcode ScannerDiscontinued Replaced by: Zebra (formerly Motorola / Symbol) LS4208 Corded Handheld Laser (1D) Barcode Scanner
Motorola / Symbol LS4000 Handheld Scanner
Performance, Comfort and Reliability for Retail and Commercial Applications
The Benchmark in Hand-Held Laser Scanners: Nothing Else Measures Up to the LS 4000i Series
For superior bar code scanning performance with maximum user comfort at a highly attractive price, the LS 4000i Scanner Series from Symbol Technologies establishes an award-winning standard of excellence that’s backed by a 5 Year Plus warranty.
More Innovation for More Performance
The LS 4000i Series is the result of Symbol’s experience in the design of innovative, high-performance scanning solutions. The LS 4000i incorporates a 650 nm laser that provides a bright scan line ensuring easy aiming even in high ambient light conditions. Combine this with a robust working range of contact out to more than 16 in. (40 cm) on 100% UPC codes and bar code data capture is a snap. Plus built-in Adaptive Logic Signal Processing decodes poorly printed and damaged bar codes.
System integration is facilitated with Advanced Data Formatting (ADF), a Symbol innovation that enables the bar code data string to be modified before sending it on to the host computer. This enhances compatibility between bar coded data and the applications software by allowing the scanner to be programmed rather than modifying the host application –which could be costly.
Symbol’s onboard interfaces: USB, RS-232C, IBM468x/9x, Keyboard Wedge, and the exclusive Synapse “Smart” technology simplify connection to virtually every host. In addition, Flash programming facilitates custom settings on specific applications enabling future upgrades and increasing the value and life of the scanner.
Award-Winning Ergonomics Symbol knows that ergonomics are just as important as scanner performance. The LS 4000i Series not only feels different, it looks different. You’ll see at a glance that Symbol designed it to be rugged while adding features to enhance operability. To maximize user comfort, the LS 4000i Series features a lightweight design with the handle optimized to fit comfortably into hands of all sizes. Reduced finger fatigue, even over extended periods of use, is achieved with a patented two-finger trigger. An overmolded rubber “chin” and “foot” on LS 4000i scanners achieves dual functionality of absorbing shock and raising the scanner off the counter for easy pickup and placement. Plus, a removable rubber cable boot guards the bottom of the scanner’s handle providing superior cable and strain relief.
Designed and Built for Maximum Reliability
With an installed base of millions of scanners, Symbol stands by its LS 4000i Series with a 5 Year Plus warranty. The Plus includes a limited lifetime warranty on the patented Mylar scan element*, which eliminates engine wear with near frictionless motion. Scanners in the LS 4000i Series are designed to stand up to everyday abuse such as accidental drops to the floor, impacts against counters, and the fluctuations of backroom temperatures. During the development of the LS 4000i, the product was subjected to a wide variety of demanding tests simulating everyday abuse with aggressive shock, vibration, temperature and tumble tests. Symbol’s engineers have pushed this product beyond its design limits to identify and reinforce potential areas of concern. This ensures long-lasting use of the LS 4000i in a wide variety of applications from point-of-sale to back room.
The Mark of a Top Performer – Application Versatility
The Symbol LS 4000i Series are the scanners of choice for a wide variety of retail and commercial applications, from small neighborhood businesses to major retailers and corporations. They are ideal for Point-of-Sale scanning, price markdowns and verification, and in-store inventory management in retail segments such as mass merchandise, specialty retail, department stores, warehouse clubs and grocery stores.
In Warehouse and Manufacturing applications LS 4000i scanners improve productivity and accuracy in shipping and receiving, performing applications such as inventory management, assembly line processes and document tracking.
LS 4000i scanners can be used anywhere where efficiency needs to be improved. For example, in Healthcare for patient information tracking, medical inventory management and also for Office use with staff time and attendance.
Accessories and More

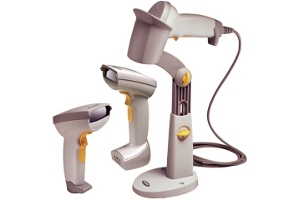

Symbol’s IntelliStand for “hands-free” presentation scanning maximizes user comfort and productivity. The stand’s height as well as scan angle are adjustable. Placing the scanner in the IntelliStand turns it on; there is no need to trigger the scanner for operation. A Multi-Mount Holder is available for countertop or wall-mount use. Easily installed, the wall-mount version adapts to suit a variety of workplace needs.
LS 407X Scanning Systems, comprising an LS 4071 cordless scanner, base station, cable and power supply, broaden the LS 4000i product line by enabling mobility and flexibility without cable restrictions. With the ability to freely move around the workplace, lifting heavy or bulky items is virtually eliminated making the workplace more convenient for both customers and workers.
5 Year Plus Warranty
- Lower cost of ownership
Superior Ergonomic Design with Patented Two-Finger Trigger
- Design permits triggering by index or middle fingers and provides user comfort even over extended periods of use
- Facilitates custom settings and future upgrades
Advanced Data Formatting
- Provides capability to modify scanned data before sending it to the host computer virtually eliminating software modifications
Adaptive Logic Electronics
- Improves productivity by ensuring good decode on both damaged and poorly printed symbols
Hands-Free Operation with Intellistand
- Presentation scanning optimizes user's comfort and increases troughput
2-D PDF417 Capable
- Versatile decode capability enables adoption of PDF applications such as age verification and customer loyalty programs
Ease of Host Connectivity
Ease of system integration is provided with 4 versions:
- LS 4004i - RS-232
- LS 4005i - IBM 468x/9x
- LS 4006i - Keyboard Wedge
- LS 4007i - USB
- In addition, each version incorporates Synapse interface technology to adapt to almost any host
- Ease of system integration is provided with 4 versions:
- Stands up to everyday abuse such as accidental drops and bumps in a wide variety of user environments from point-of-sale to back room
- LS 407X cordless version enables tether-free operation increasing productivity and reducing cable maintenance costs
