Zebra (formerly Motorola / Symbol) MC55 Enterprise Digital Assistant (EDA)Discontinued Replaced by: Zebra (formerly Motorola / Symbol) MC65 Mobile Computer

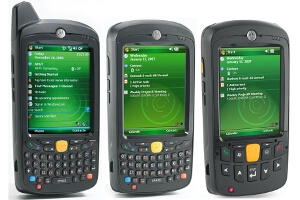

Motorola / Symbol MC55 Enterprise Digital Assistant (EDA)
True Pocket-Sized Rugged Handheld Computer with Advanced Voice and Data
The Motorola MC55 brings a new level of functionality and flexibility to pocket-sized mobile devices. As the smallest and lightest Motorola rugged EDA, the MC55 packs the power of a cell phone, bar code scanner, camera, walkie talkie and mobile computer into a robust business class device with true consumer styling and ergonomics — and is designed to meet mobile worker, business application and IT requirements. This highly flexible product family provides mobile workers both inside the enterprise campus and out in the field with voice and data services needed to streamline tasks, increase productivity as well as improve customer response times — and customer service levels. A broad array of accessories enables easy customization of the MC55 to meet the unique needs of your business applications. And with enterprise durability, manageability, security and scalability, Motorola’s MC55 easily meets the most demanding IT policies and mandates.
One Family Of Devices For Different Workers…and Different Tasks…In Different Environments
This single device is available in primary variants and many configurations to best meet the requirements for a diverse set of mobile workers. Designed for workers inside the four walls, the MC5590 offers wireless LAN (WLAN) and Bluetooth connectivity for modems and printers — ideal for healthcare workers in a hospital, retail managers, retail mobile point of sale and more. The MC5574 is designed for workers outside your four walls — including field service, government and public safety workers. The MC5574 offers WWAN, WLAN and Bluetooth connectivity that meets the needs of workers who spend time inside the four walls as well as out in the field. In addition, a multitude of configurations for each model allows enterprises to purchase the right feature set for different types of workers instead of all features for all workers, reducing capital expenditures and the overall cost of your mobility solution.
Choose The Data Capture Options You Need
Automate, enrich and error proof data collection in various areas of your business with a full suite of highly advanced data capture options, providing the flexibility to match the right options to the right workers. For workers who only need bar code scanning, choose a 1D laser scanner for environments that utilize only 1D bar codes or a 2D imager to enable the capture of 1D and 2D bar codes. For workers who need to capture images as well as bar codes, a 2 megapixel autofocus high resolution color camera with either a 1D laser scanner or 2D imager allows the easy capture of bar codes and signatures as well as photographs for proof of condition and more.
Maximum Voice Quality…And Functionality
Designed from the ground up to support voice as well as data, the Motorola MC55 offers a superior voice experience. Functionality includes full duplex voice, push-to-talk (PTT) over the WWAN and WLAN, enabling one-to-one calls as well as walkie-talkie style instant communications. Additionally, Bluetooth headset, handset and speakerphone modes provide workers with the convenience and flexibility to meet the needs of the job…and the moment.
Robust Locationing With Best-In-Class GPS
Chosen for its superior sensitivity and tracking capabilities, the integrated high performance SiRFstarIII GSC3f/LP chipset enables a multitude of real-time location based applications, from directions for drivers to real-time fleet location for dispatchers. The chipset delivers expanded coverage for GPS applications by enabling the rapid and highly accurate capture of signals in some of the most challenging environments, including urban canyons and areas where foliage is very dense. And the low-power chipset delivers top-notch accuracy with minimal power requirements, conserving battery power to help provide end-users with location-based services.
Easily Customize To Meet Your Specific Application Requirements
A complete line of accessories enables you to tailor the MC55 to best meet the needs of your applications and your mobile workers. A broad range of keypads ensures easy operation for a wide variety of applications — choose numeric keypads for workers who primarily utilize the MC55 as a smart phone and for very simple data entry, while an array of alphanumeric keypads enables easy entry of more sophisticated data. Magnetic stripe readers provide on the spot split second processing of credit and loyalty cards — ideal in retail as well as field service and sales operations. And IEEE 1725 compliance for the MC55 line of accessories brings a new level of reliability and safety to the entire MC55 system.
Enterprise Durability, Manageability, Security and Scalability
When it comes to meeting enterprise IT criteria, the Motorola MC55 shines. The sleek consumerstyled device delivers true enterprise class durability.
This device is approved for use with PestPac Pest Control software.
- Magnetic Stripe Reader (MSR)
Available with MSR that reads up to three tracks of data from credit or loyalty cards. Can be used to meet worldwide opportunities for credit transactions only
- Sleek Yet Rugged Pocket-Sized Lightweight Form Factor
Built for year round use in nearly any environment, with IP54 sealing and the ability to survive 4 ft./1.2 m drop to concrete
- Powerful Microprocessor Designed For Mobility: XScale PXA270 @ 520 MHz
Desktop-like performance with lower power requirements
- Microsoft’s Windows Mobile 6.5 Operating System
Increased interoperability with existing enterprise infrastructure; enhanced security features; more flexible development platform; improved mobile messaging collaboration
- 802.11a/b/g WLAN Connectivity with Flexible VoIP (VoWLAN) support (MC5590 only; MC5574: 802.11b/g)
Cost-effective voice and data connectivity in the office and hot spots
- WPAN: Bluetooth v2.0 Enhanced Data Rate (EDR)
Wireless connectivity to modems, printers, headsets and more; v2.0 provides additional throughput, improved security and additional profiles for expanded connectivity to more device types
- High-Quality Speakerphone, Microphone And Transducer
Superior voice quality and performance
- Multiple Voice Modes: Handset, Speakerphone And Bluetooth Headset
Flexibility to use the right mode at the right time
- Multi-Mode Data Capture: 1D/2D Bar Code Scanning Plus 2-Megapixel, Auto-Focus, Flash-Enabled Optional Color Camera with Decode Capability
Ability to capture high-quality pictures, documents and signatures as well as 1D and 2D bar codes improves workforce automation, increases productivity and reduces data errors
- 3.5 inch Color High Definition QVGA Display (320 x 240)
Easy to view in virtually any lighting
- Mobility Platform Architecture (MPA)
Enables easy and cost-effective porting of applications from many other Motorola mobile computers
- IEEE 1725 Compliance For The Entire MC55 System - Including All Models, All Batteries and All Power-Related Accessories (Such As Cradles and Charging Cables)
Mitigates battery system failure, bringing a new level of reliability, quality and safety to the entire MC55 system
- Multiple Keyboard Options
Flexibility to use numeric, QWERTY, QWERTZ, AZERTY and NAV PIM keyboards allows MC55 to meet diverse user and application needs
- User Accessible Microsd Card Slot
Provides additional memory and expandable functionality
- 128MB RAM/512MB FLASH
Provides memory space required to enable robust performance for database applications
- 2.5G WWAN: GSM/GPRS/EDGE Broadband Connectivity Over The Cellular Network (MC5574 Only)
High performance wireless broadband with the world’s broadest voice and data footprint for workers outside the four walls.
