Zebra (formerly Motorola / Symbol) MS4400 MiniScan Fixed-Mount Barcode ScannerDiscontinued Replaced by: Zebra (formerly Motorola / Symbol) DS457 Fixed-Mount Area Imager (2D) Barcode Scanner

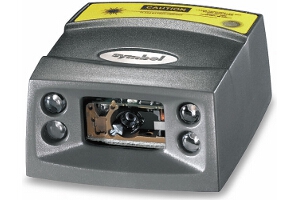

Motorola / Symbol MS4400 Symbol MS4400 Series MiniScan Fixed-Mount Imager
Miniature Imager Offers Comprehensive Data Capture — And Versatility
The flexible and compact Symbol MS4400 Series offers high performance 1D and 2D bar code scanning, image capture and direct part mark (DPM) reading, wherever an extremely small footprint and fixed mounting are required. One of the smallest charged couple device (CCD) imaging products available today, the Symbol MS4400 is designed to fit in tight spaces — from a check-in kiosk at an airport gate, in point-of-sale (POS) areas with very limited counter space, in manufacturing cells where space is at a premium, in clinical diagnostic equipment, as a standalone device and more. Ready to mount, this small plug-and-play device can be integrated quickly and easily into your existing environment.
Superior Bar Code Capture, Imaging And DPM Reading Performance
The Symbol MS4400 offers an array of features designed to deliver superior data capture performance. The dual-focus system provides exceptional depth of field for all bar code densities, offering the greatest decode range — and the flexibility required for use in a wide variety of applications. A wide range of bar code densities is supported — from 5 mil to 100 mil — enhancing the ability to capture virtually any bar code.Integrated bar code decoding simplifies integration into your environment by eliminating the need to develop complex decoding algorithms. Built-in illumination ensures that bar codes, images and marks are appropriately lit to enable accurate capture, providing dependable operation in any lighting condition — from bright sunlight to total darkness. And when used in presentation mode, the Symbol MS4400 is quiet and unobtrusive, activated only when movement is detected. It also can be triggered with an external signal, allowing integration into a manufacturing line.
Easy To Use
The Symbol MS4400 offers features that make bar code capture easy, regardless of the user — your employees or customers at self-service kiosks. The omni-directional scan pattern eliminates the need to position items precisely. The clear aiming frame enables users to visually see the area that is to be captured, ensuring first time every time accurate capture. And an audible tone and visible LED light, programmable via two-way host communications, let users know that the data capture is accurate — and complete.
Proven Technology To Enhance Your Solutions
With millions of installations worldwide, our OEM devices are proven to deliver high reliability and superior performance, ensuring the accurate and quick capture of data and images in your missioncritical applications and devices. In addition, an easy to- integrate design and expert assistance from our world-class OEM support team enable you to bring your systems to market quickly and cost effectively. And since even the most intelligent products require a maintenance plan and a support strategy, we offer superior services to help you maximize uptime and maintain peak performance.
- Compact Size Enables bar code and image capture in tight spaces.
- Easy Mounting Rapidly integration into your environment.
- 1D and 2D Bar Code Reading Captures bar codes in a variety of environments.
- Multiple Application Support Reduces expenses with the flexibility.
- Ability To Read A Wide Variety Of Dpm Marks Enhances quality processes and improves lifetime product traceability.
- Omni-Directional Capture Pattern Minimizes need to position bar codes, ensuring rapid and accurate data capture.
- Plug-And-Play Installation Reduces development time and integration cost, and includes exit window, integrated beeper and common interfaces.
- Intuitive Aiming Feature Projects a framed aiming pattern, enabling users to accurately aim at area.
- Built-In Led Illumination Adapts to any lighting environment, from total darkness to bright sunlight.
- Smart Dual-Focus System Offers the greatest decode range for maximum flexibility.
