Zebra (formerly Motorola / Symbol) XLP 7000 PowerBroadband System Long Range Power over EthernetDiscontinued Replaced by: Direct Replacement Not Available - Contact Us For Suggested Replacement

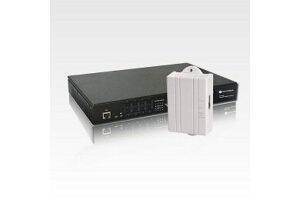

Motorola XLP-700 PowerBroadband System Long Range Power over Ethernet
Mobility applications are transforming the Enterprise with tools such as advanced data capture, mobile computers, and IP communications. Add intelligent security systems and IP cameras, and the enterprise easily pushes out the traditional boundaries of Ethernet network access. One way to extend the network infrastructure is Long Range Power over Ethernet technology.
Motorola combines two key requirements to bridge the divide between isolated network islands - Power plus Broadband.
Using the XLP system, network architects can provide access anywhere for network security cameras, wireless access points, access control systems, or VoIP telephony.
XLP-7000 operates over a single pair of telephone grade UTP wire, managing the delivery of power and IP connectivity up to 5,000ft (1500m). Automatic fault protection and power monitoring ensure a reliable, safe, and efficient network infrastructure.
- High Availability:
Maximize network uptime and centralize the power for all remote devices. Connects to standard IEEE 802.3af Ethernet PD; class 0, 1, 2, or 3.
Extend PoE up to 5,000ft (1,500m) - for both power and data. Easily installed over existing or new single UTP wire pair. Power and Data are both rate adaptive. See chart on back page. Manage power per port by setting priority levels and monitoring power usage.
Reduce engineering time and eliminate requirements for new power sources for remote Ethernet devices
- Long Range PoE
Eight IEEE 802.3af compliant Ethernet PoE ports
- High Bandwidth
Tuned digital QAM signals provide high speed bitrate up to 70Mbps over copper wire. Automatic rate adaptation from 0ft to 6,000ft (2,000m)
- Power Protected
Ground Fault Interrupt circuits with overcurrent and short detection protect the maintenance personnel and ensure reliable, long term power delivery
