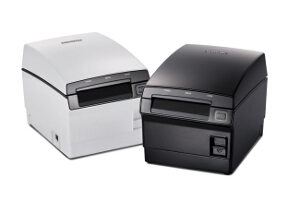

Bixolon SRP-F310 3" Thermal POS Printer

Bixolon SRP-F310 3 inch Thermal POS Printer

Liquid-Barrier™ front exit printer
The SRP-F310 is a front exit type receipt POS printer adapting structure for preventing liquid infiltration and certified under the electrical protection level, IPX2 Class. Its design components include an exterior cover as well as dual layers on both sides of the printer which discharge liquid preventing it from infiltrating inside. In addition, it is designed with an outlet at the bottom of the printer for liquid that may seep inside through the cover open button.

All in one plus™ interfaces
The SRP-F310 features a powerful interface that goes beyond your imagination of what you are looking for in a receipt POS printer. It includes USB 2.0 On board for fast data transfer and USB host port for the use of WLAN dongle* and Ethernet, which is sold separately at a high price. The four interfaces are provided as a built-in feature. Selectable Interfaces are Serial and Parallel.

*WLAN dongle : The SRP-F310 is compatible with WLAN adapters using the Ralink RT73 chipset. WLAN USB adapters using chipsets other than Ralink RT73 won't work when they are connected to the SRP-F310.

Built-in power supply
The power adapter is elegantly integrated into the compact printer housing. Consequently, messing around with cables is avoided which is ideal at space-limited POS terminals or highly frequented cash desks.

Optional BIXOLON Interactive Linker
BIXOLON Interactive Linker is an advanced printer option that allows users to add commands to four customizable buttons. For instance, they can assign such BIXOLON Interactive Linker based programs as "Receipt on Demand", "Cash Drawer Open", "Printing Stop" and "Signal Back to Host" to each button to accommodate their needs.

Ergonomic design & High glossy option
BIXOLON SRP-F310 is designed in a pentagon shape with separate angles for the control panel unlike existing front exit type receipt POS printers. This ergonomic design allows users to check the printer status more conveniently and eliminates the need to open a drawer to check the status for those who keep the printer in a drawer. High glossy option is also available and it fits modernly in a place that adapted Tablet PC as their point of sale or order taking solutions.

Applications

• Receipt printing
• Coupon printing
• Ticket printing
• Daily Report
• Kitchen
• Delivery

• Liquid-Barrier™ front exit printer
  IPX2 Class Certified

• All-in-one Interfaces
  • USB + Serial + Ethernet + WLAN*
  • USB + Parallel + Ethernet + WLAN*
  • * WLAN: 802.11 b/g/n USB dongle type (optional)

• Optional BIXOLON Interactive Linker
  Programmable choice using 4 buttons. (Receipt on demand printing/Cash drawer open/ Printing stop/Signal back to host POS)

• Ergonomic design & High glossy option
