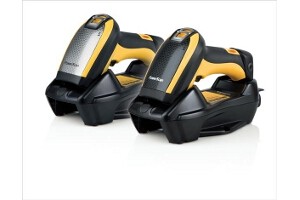

Datalogic PowerScan PM9500-DPM Evo Wireless Industrial Handheld Area Imager (2D) Barcode Scanner

PM9500-DPM BARCODE SCANNER

Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening and ink jet printing. Each of these methods has specific advantages and disadvantages in terms of durability, cost and ease of reading.

The PowerScan™ PM9500-DPM Evo reader is a cordless rugged handheld area imager specifically addressed and capable of reading codes marked with DPM.

The PowerScan PM9530-DPM Evo imager includes the latest optics and software from Datalogic to make the reading of codes marked with DPM technology easy and intuitive. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type. The scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.

The PowerScan PM9500-DPM Evo imager is equipped with Datalogic’s STAR Cordless System™ 2.0, which is available in 433 MHz or 910 MHz.  Additionally, it features ‘backwards compatibility’, making it compatible with the current PowerScan STAR radio technology.

The intuitive aiming system allows the highest first-pass reading rate. Additionally, the PowerScan PM9500-DPM Evo area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on users’ eyes.

Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode.

The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.

Industry-Applications:

• Manufacturing Shop Floor
• Work-in-Progress
• Sub-Assembly
• Component Tracking
• Quality Control
• Time and Cost Analysis
• Line Inventory Control

• Enhanced Decoding software will support any kind of Direct Part Marking (DPM) technology
• Snappy omnidirectional reading
• Intuitive aiming system
• Soft white light illumination
• Available with optional display with 4-keys
• STAR Cordless System™ available in 433 MHz or 910 MHz
• Datalogic’s Motionix™ motion-sensing technology
• Image capture
• Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
• EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
