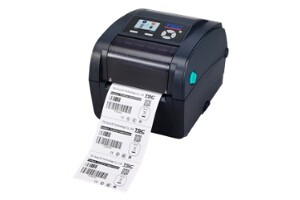

TSC TC Series Desktop Thermal Barcode Printer
TSC TC BARCODE LABEL PRINTER
The TSC TC series of desktop thermal barcode printers is based on the best features our bestselling TTP-245C Series with some colorful improvements. Like the TTP-245C Series, the TC features a small footprint and the high performance that customers have come to expect from TSC. Durable, reliable and fast, TC series printers produce 4-inch-wide labels, tags or receipts at up to 6 ips, offering a price-performance combination that is unmatched by other desktop thermal barcode printers on the market.
The TC Series is designed for ease of use. Media and ribbons are easy to install. The printer uses thermal transfer ribbons of up to 110 meters in length on 0.5” notched cores. The media cabinet holds label rolls up to 5 inches in diameter on 1” or 1.5” cores and are easily loaded into a center biased spring loaded roll holder.
The new TC Series features four models to suit your needs and budget:
| Model | Print Speed | Resolution | Operation | Memory |
| TC200 | 152 mm (6”)/second | 8 dots/mm 203 DPI | 1 button, 1 LED | 8 MB SDRAM, 4 MB FLASH |
| TC300 | 102 mm (4”)/second | 12 dots/mm 300 DPI | ||
| TC210 | 152 mm (6”)/second | 8 dots/mm 203 DPI | 6 buttons, 1 color LCD screen | 64 MB SDRAM, 128 MB FLASH |
| TC310 | 102 mm (4”)/second | 12 dots/mm 300 DPI |
Standard communications interfaces for TC200 and TC300 models includes Ethernet, USB 2.0, parallel and serial RS-232.
Standard communications interfaces for TC210 and TC310 models includes Ethernet, USB 2.0, USB host port (to support optional scanners and keyboards) and serial RS-232.
Optional communications for the entire TC Series includes external Bluetooth (user option) and external 802.11 b/g/n wireless (user option).
Applications:
- Point-Of-Sale
- Product Marking
- Receipt/Coupon Printing
- Compliance Labeling
- Asset Tracking
- Document Management
- Shipping/Receiving
- Inventory Control
- Specimen Labeling
- Patient Tracking
- Perfect size – space saving design
- Standard memory of 128 MB Flash, 64 MB SDRAM for TC210 and TC310
- SD card reader for memory expansion up to 32 GB standard for TC210, TC310
- High quality double-walled clamshell design
- Easy ribbon loading
- Easy media loading featuring center-biased spring loaded design.
- Durability and reliability
- 2.3” color TFT Display for TC210 & TC310 only
- Multiple interfaces
- Powerful firmware: TSPL-EZ™, file manager, BASIC programming, stand-alone programming
- 2-year limited warranty
